CENTER CONSOLE

for the RV-6, RV-7, & RV-9

CLICK on the PICS to ENLARGE

This console adds a very nice finishing touch to your pride and joy. It is also nice to look at and makes the cabin more comfortable!

These consoles are designed to be installed in Van's Aircraft models RV6 , RV7, & RV9 EXPERIMENTAL aircraft ONLY. Suitability, Safety & Compatibility for the installation & usage of the consoles are the sole responsibility of the builder and or installer. Installation of any products on this site is at the builder and/or installer’s own risk and discretion. We / I do not accept responsibility for improper use or installation of our products.

Thank you for looking.

- The consoles have been improved. They are now laser cut and made with a more automated process.

- I am also now offering the consoles in kit form for the RV7 and RV9. This kit is much like the Vans pre punched kits.

You can simply cleco the parts together right out of the box.

- We are also offering the consoles completely assembled but un-upholstered. See the price list at the bottom of this page for details.

FEATURES

Facts About the Center Console

Mounts easily in a finished or unfinished RV-6(a), RV-7(a), RV-9(a)

Replaces your existing tunnel cover

Several options available to meet your needs and personal taste.

Can be removed with only a few screws so you can still lie across your seats to get under your panel

Includes an inspection cover on the side to access your throttle Quadrant and fuel valve (if included)

Switches can be easily added to the console for easy access during flight

200 cubic inches of storage space under the arm rest

Storage dimensions are approximately 10” x 10” x 2”.

Console can still be used even if you are still using the panel mounted “plunger” style engine control cables.

Several console options are currently available:

- Just the console/armrest with no cutout for the Throttle Quadrant.

- The console with a 2 or 3 lever Quadrant.

- The fuel valve can be either Van’s standard valve with a handle extension, or the Andair type.

If you choose to use the fuel valve option, you can either use your original valve supplied by Van’s in the kit with an extension kit, or choose to upgrade to the Andair locking selector valve.

This console adds a very nice finishing touch to your pride and joy.. It is nice to look at and makes the cabin more comfortable in my opinion.

RV6(a) Considerations:

RV6’s will not be able to use the console if they are using the manual flap lever. You would have to upgrade to electric flaps.

Future Products

I will be coming out with a simple armrest similar to what you would find in a captains chair in a van. I also have a simple center console that is only as long as the armrest itself coming soon.

Upholstery

The upholstery is done by Flight Line Interiors. There are several choices of fabric or high quality vinyl that can be used. We can get samples to you, or I can put you in touch with Abby at Flight Line. You can also go to our Upholstery samples link (CLICK HERE) to see some of what is available.

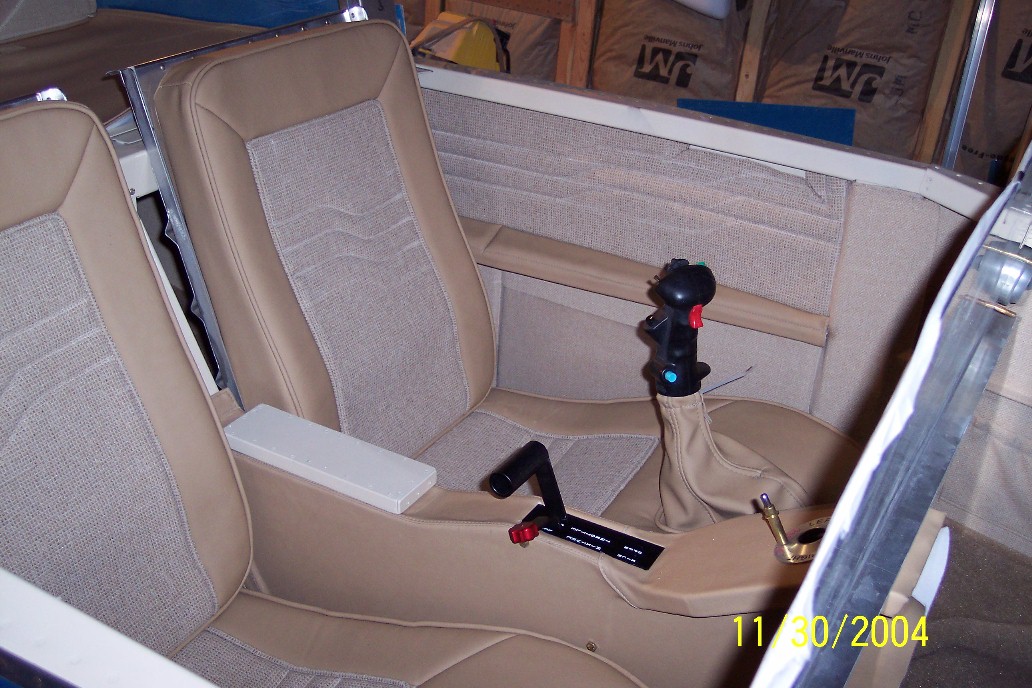

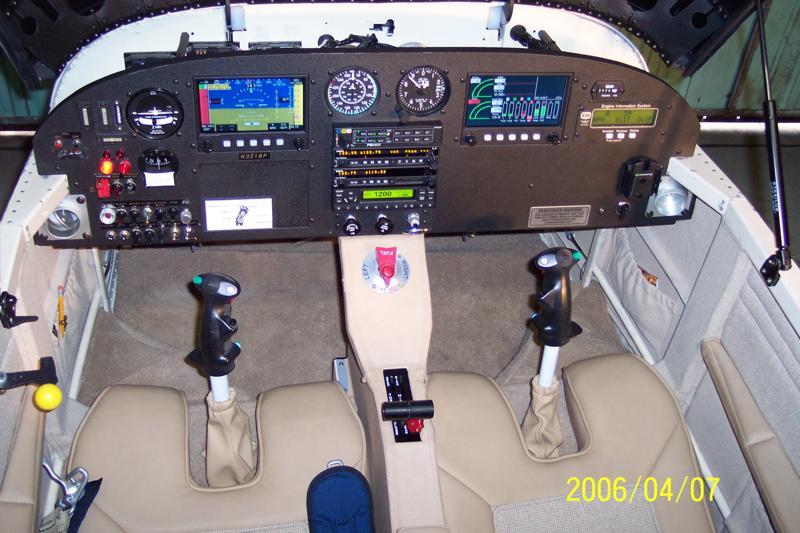

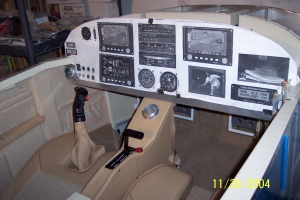

The photo on the web site shows the console in my RV7A. It is not complete in this picture because the hinged compartment cover of the console is not yet upholstered. This will actually look just like the side armrests when finished, and will open to gain access to your storage compartment.

I had also not mounted the throttle friction lock, nor had I mounted the cables. The fabric on the forward side had not been completely attached yet either. Just in case you noticed those things in the photo, I thought I'd bring them up.

DIMENSIONS

The dimensions are as follows: 3" wide x 11" high at the arm rest x 8" above the spar at the throttle Quad. (not including the throttle lever itself) X 31" long (which is the distance from the flap motor housing to the forward lip at the bottom of the panel. This will fit right in with no modification to your fuselage. One thing to note is that the forward top of the console (above the fuel valve) is 1-1/2" below the bottom of a standard vans panel. Our panel in the photos is a custom panel to allow for the desired instrument layout. The 1-1/2 inch distance will allow for a spacer that will be able to house the traditional plunger style engine/prop controls or additional switches. We will provide these spacers with the consoles on request.

Part Number	Description	Price
RV7C2VA_TQ2_KIT_UU	Center Console Kit (you assemble) including a 2 Lever Throttle Quadrant (not including the fuel valve or upholstery).	$325.00
RV7C2VA_TQ2_KIT_FU	Center Console Kit (you assemble) including a 2 Lever Throttle Quadrant and Pre-Cut and Sewn Upholstery of your choice. (not including the fuel valve)	$390.00
RV7C2VA_TQ3_KIT_UU	Center Console Kit (you assemble) including a 3 Lever Throttle Quadrant (not including the fuel valve or upholstery).	$345.00
RV7C2VA_TQ3_KIT_FU	Center Console Kit (you assemble) including a 3 Lever Throttle Quadrant and Pre-Cut and Sewn Upholstery of your choice. (not including the fuel valve)	$410.00
RV6C2VA_TQ2-UU_ OR RV79C2VA_TQ2-UU_	Un-upholstered console with a 2 lever Quadrant. (not including the fuel selector). You will need to make an extension kit for the original fuel valve that comes in the kit from Van’s if you choose not to use the Andair valve.	$500.00
RV6C2VA_TQ2-FU_ OR RV79C2VA_TQ2-FU_	Fully upholstered console with a 2 lever Quadrant. (not including the fuel selector). You will need to make an extension kit for the original fuel valve that comes in the kit from Van’s if you choose not to use the Andair valve.	$565.00
RV6C2VA_TQ3-UU_ OR RV79C2VA_TQ3-UU_	Un-upholstered console with a 3 lever Quadrant. (not including the fuel selector). You will need to make an extension kit for the original fuel valve that comes in the kit from Van’s if you choose not to use the Andair valve.	$520.00
RV6C2VA_TQ3-FU_ OR RV79C2VA_TQ3-FU_	Fully upholstered console with a 3 lever Quadrant. (not including the fuel selector). You will need to make an extension kit for the original fuel valve that comes in the kit from Van’s if you choose not to use the Andair valve.	$585.00
RV6C2VA_TQ0-UU_ OR RV79C2VA_TQ0-UU_	Un-upholstered console. (Does not include a Throttle quadrant or quadrant cut-out in the console)	$375.00
RV6C2VA_TQ0-FU_ OR RV79C2VA_TQ0-FU_	Fully upholstered console. (Does not include a Throttle quadrant or quadrant cut-out in the console)	$440.00
EFS20x3-M	Andair 180 Degree dual “lift & turn” EXTENSION fuel valve labeled “Left / Off / Right”. Comes with Silver anodized & countersunk face plate, & 12” cut to size extension. Fuel valve comes with 3 male AN-6 Flare type fittings for the two tanks and fuel feed ports.	$410.00
FS20x3-M	Andair 180 Degree dual “lift & turn” fuel valve labeled “Left / Off / Right”. Comes with Silver anodized & countersunk face plate. Fuel valve comes with 3 male AN-6 Flare type fittings for the two tanks and fuel feed ports.	$310.00
Note: The Andair valve with the extension is just over $400 for both pieces. Yes, they are expensive, but try accidentally shutting off your fuel in flight. It’s worth the extra $400 to me!!! I do sell Andair valves and throttle quadrants separately without the console as well. If you would like an Andair valve and/or extension configuration that is not on the above list, please contact me for a quote.
